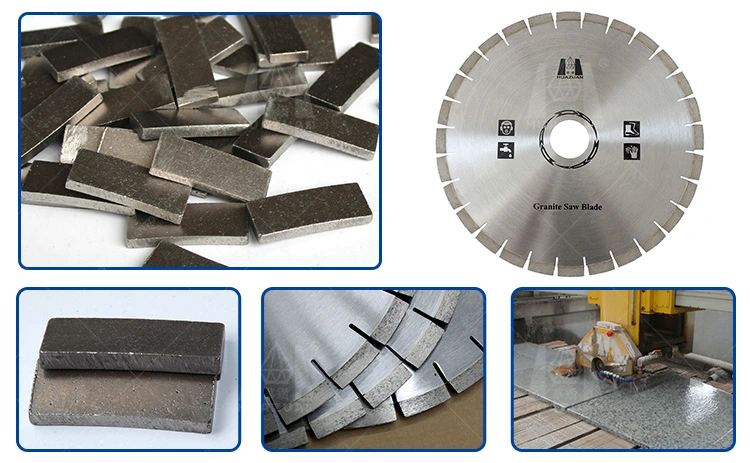

Huazuan Tools Granite Cutting Disc Diamond Saw Blade

Product Name

Granite Diamond Saw Blade

Size

  40*3.4*15mm ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. )

Diameter

 400mm blade ( other blades 250mm-800mm segments can make )

Application

 Used for cutting granite ( also other more segments for marble, sandstone, limestone, lava, concrete )

Feature

1. Fast cutting & long life & Stable performance, High grade of diamonds

2. Different bonds are for different applications & precise segment size

3. Working safe, quiet, and precise, reducing cutting & working time

4. Great adaptability & No chipping

Package

 Color box,double blister card,skin packing,white box etc

Quality

ISO9001&Gold Supplier

Factory=Quality Control=Competitive Price=Owntechnology=OEM

Granite blade segment dimension

Outer Diameter

Dimension of Teeth

No.of teeth

Inch

mm

length

Thickness

Height

10"

250

40

3.0

12/15/20

17

12"

300

40

3.0

12/15/20

21

14"

350

40

3.2

12/15/20

24

16"

400

40

3.4

12/15/20

28

18"

450

40

4.0

12/15/20

32

20"

500

40

4.2

12/15/20

36

24"

600

40

4.6

12/15/20

42

28"

700

40

5.6

12/15/20

42

32"

800

40

5.6

12/15/20

46

Marble blades segment dimension

10"

250

40

3.0

8/10

18

12"

300

40

3.0

8/10

22

14"

350

40

3.4

8/10

25

16"

400

40

3.6

8/10

29

18"

450

40

4.0

8/10

32

20"

500

40

4.2

8/10

36

24"

600

40

4.6

8/10

42

28"

700

40

5.6

8/10

42

32"

800

40

5.6

8/10

46

Other specifications are available upon request.
